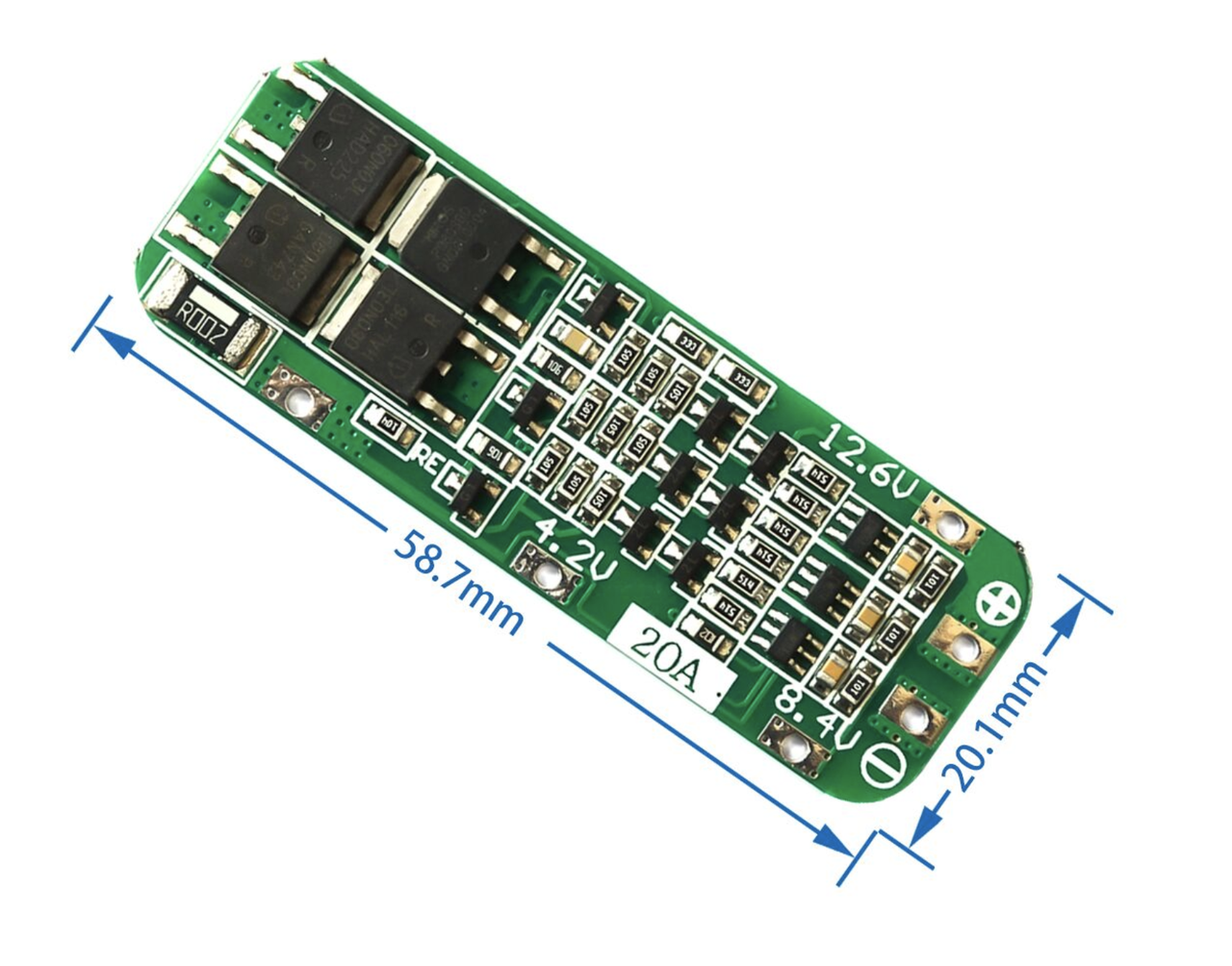

Модуль защиты Li-Ion 18650 3S 20A. 12.6 В

Note : more than 3A current discharge products  rate is more than 3C  Ratio calculation formula : 1C rate of the battery , 2000 capacity is  equal to 2AH 1 2A maximum working current . 3C ratio battery , 2000 capacity is equal to 2AH * 3 = 6A maximum  working current . In use battery heats is ratio is not applicable to , this kind of situatic  can't use for a long time , the battery will soon be damaged

Note 1 : in accordance with the diagram wiring 0 V , 3 . 7V ( b- ) ( B1 )  ( B2 ) , 11 . 1 V , 7.4 V ( B + ) don't deliberately short circuit

Note 2 : after connected line need to recharge , just can have output

Note 3 : 3 series battery , please make sure that each set of battery  voltage , if not , please separate with each set of batteries in series . Discharge test , the battery voltage drops quickly is a bad battery .

Note : don't put the good cells and in bad ! Three groups of battery  capacity / internal resistance as close as possible ! ( 2 + 1 good battery ,  the use effect of poor battery = the use effect of three bad battery )
